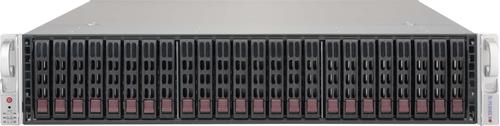

SUPERMICRO Computer Case Rack Black 600 W
Hinnat näkyvät vain verkkokauppaan kirjautuneille käyttäjille.
|
|
SUPERMICRO Computer Case Rack Black 600 W
Tuotekoodi:
CSE-216BE2C-R609JBOD
-
Asennettu
0GB
-
Liitäntä
SAS, SATA
-
Max levyt
24
-
RAID
Kyllä
-
Tyyppi
Rack (2U)
-
Levyn koko
2.5"
|
SuperChassis 216BE2C-R609JBOD
CSE-216BE2C-R609JBOD
Features:
- 2U Storage JBOD Chassis with capacity 24 x 2.5" hot-swappable HDDs bays
- Dual Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
- 8 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
- 1x IPMI port for Remote System Power on/off and system monitoring
- Support NTP for time synchronization & RTC battery backup
- 600W (1+1) 94% efficient Platinum level power supplies
- 3 x 80mm high efficient hot-swappable fans for best system cooling
- Ideal for Cloud backup, data Replication or High density Archive Storage Applications
- Qualified SAS HBA / controller:
- AOC-SAS3-9300-8E - 12Gb/s 2-external ports SAS3 HBA
- AOC-SAS3-9380-8E - 12Gb/s 2-external ports SAS3 RAID Controller
Specifications:
|
|
| Product SKUs |
|
| CSE-216BE2C-R609JBOD |
- SuperChassis 216BE2C-R609JBOD
|
|
|
|
|
| Form Factor |
|
|
|
|
|
|
|
| Dimensions |
|
| Height |
|
| Width |
|
| Depth |
|
| Gross Weight |
|
| Net Weight |
|
| Packaging (W x H x L) |
- 26.7" (678 mm) x 11.4" (290 mm) x 34.5" (876 mm)
|
| Available Color |
|
|
|
|
|
| Drive Bays |
|
- 24x 2.5" hot-swap HDD bay for JBOD solution
|
|
|
|
|
| Qualified SAS Controllers |
|
- AOC-SAS3-9380-8E
- AOC-SAS3-9300-8E
|
|
|
|
|
| Backplane |
|
- 24-Port 2U SAS3 12Gbps dual-expander backplane, support up to 24x 2.5-inch SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature)
|
|
|
|
|
| Front Panel |
|
| Button |
- Power On/Off button
- System Reset button
- Unit Identification (UID) button
|
| LED |
|
|
|
| Systems Cooling |
|
| Fans |
- 3x 80x38mm hot-swap cooling fan(s)
|
|
|
|
|
| System Monitoring |
|
|
|
|
|
|
|
| Operating Environment (System) |
|
| Operating Temperature Range |
|
| Non-Operating Temperature Range |
- -40°C - 70°C (-40°F - 158°F)
|
| Operating Relative Humidity Range |
- 8% - 90% (non-condensing)
|
| Non Operating Relative Humidity Range |
- 5% - 95% (non-condensing)
|
|
|
|
|
| Power Supply |
|
|
600W / 650W 1U Redundant Power Supply
|
| Power Efficiency |
|
| Total Output Power and Input |
- 650W with Input 200 - 240Vac
- 600W with Input 100 - 127Vac
- 650W with Input 200 - 240Vdc
|
| AC Input Frequency |
|
| Dimensions (L x W x H) |
|
| Output Type |
|
| +12V |
- Max: 54.16A / Min: 0A (200Vdc - 240Vdc)(for CCC only)
- Max: 54.16A / Min: 0A (200Vac - 240Vac)
- Max: 50A / Min: 0A (100Vac - 127Vac)
|
| +5Vsb |
|
| Power Distributor |
- PDB-PT216-2824
- O/P: 12V/100
- +5V Max: 30A
- +3.3V Max: 24A
- -12V Max: 0.6A
|
| Certification |
|
|
|
|
|
| Regulatory (Power Supply) |
|
| Power Supply Safety / EMC |
|
