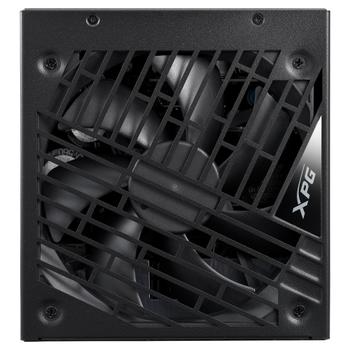

XPG Netzteil XPG CORE REACTOR II 1000 (1000W/ATX3.1) 80+ Gold retail

XPG Core Reactor II 1000W

• Next-Gen Ready - ATX 3.0 & ATX 3.1 COMPLIANT
  • CORE REACTOR II series power supply units meet Intel ATX 3.0 & ATX 3.1 design guide specifications and feature a 12VHPWR connector. By upgrading to an ATX 3.0 & ATX 3.1-compliant power supply, you'll be fully equipped for the upcoming wave of high-performance components. A must for the modern gamer, creator, or AI developer. Stay ahead of the curve by upgrading to an ATX 3.0 & ATX 3.1 PSU, the new standard in PC hardware.
• Certified GOLD Efficiency
  • CORE REACTOR II units recieved 80 PLUS GOLD certifications for efficiency, achieving up to 91.40% (115V) efficiency at 50% load. It comes in 1200W, 1000W, 850W, 750W, and 650W models for varying user needs and scenarios. It's the perfect PSU for mid-to-high level components, including the latest CPUs and GPUs.
• Intelligent Fan-Curve Design
  • The intelligent fan curve ensures quiet operation, even under full power load. By starting the fan at a low RPM, fan performance is both enhanced and extended, thereby increasing the power supply unit's lifespan.
• Premium all 105°C Japanese Capacitors
  • CORE REACTOR II features top-tier 105°C Japanese capacitors, ensuring exceptional stability and reliability of the PSU for many years of dependable performance.
• 8 Industrial Protections with 10-Year Warranty
  • CORE REACTOR II is protected by 8 industrial-level protection mechanisms and backed by a 10-Year Warranty, ensuring the safety and stability of both the unit and the system.
• PEAK PERFORMANCE AND RELIABILITY
  • All XPG ATX 3.0 and ATX 3.1 power supplies are designed to support up to 235% power excursion, enabling the system to handle sudden power spikes, ensuring stability, and preventing crashes during intense workloads like gaming, rendering, and data processing.

• 650W-850W: 140 x 150 x 86mm
• 1000W-1200W: 160 x 150 x 86mm

• 1200W: PLATINUM
• 1000W: PLATINUM
• 850W: PLATINUM
• 750W: PLATINUM
• 650W: PLATINUM

• GOLD

• ATX 3.0 & ATX 3.1

• OCP | OVP | OPP | OTP | UVP | SCP | NLO | SIP

• CE | CB| FCC(IC) | TUV | cTUVus | TUV S-Mark | NOM | BSMI | UKCA | EAC | CCC | RCM

• > 0.99

• 100-240V

• 1200W: 15A
• 1000W: 13A
• 850W: 12A
• 750W: 10A
• 650W: 10A

• 650/750/850/1000/1200W:47Hz-63Hz

• +5V | +3.3V | +12V | -12V | +5Vsb

• 1200W: +5V/+3.3V :22A, +12V:100A, -12V:0.3A, +5Vsb:3A
• 1000W: +5V/+3.3V :22A, +12V:83.5A, -12V:0.3A, +5Vsb:3A
• 850W: +5V/+3.3V :22A, +12V:70.8A, -12V:0.3A, +5Vsb:3A
• 750W: +5V/+3.3V :22A, +12V:62.5A, -12V:0.3A, +5Vsb:3A
• 650W: +5V/+3.3V :20A, +12V:54.1A, -12V:0.3A, +5Vsb:3A

• 1200W: 2820W(*up to 235% of the PSU's rated power for 100μs)
• 1000W: 2350W(*up to 235% of the PSU's rated power for 100μs)
• 850W: 1997W (*up to 235% of the PSU's rated power for 100μs)
• 750W: 1762W (*up to 235% of the PSU's rated power for 100μs)
• 650W: 1527W(*up to 235% of the PSU's rated power for 100μs)

• 50°C

• 650W-850W: 120mm FDB Fan
• 1000W-1200W: 135mm FDB Fan

• FDB (Fluid Dynamic Bearing)

• 2400 RPM

• 100K hours at full load

• 1200W/1000W:1
• 850W/750W/650W:1

• 1200W/1000W:2
• 850W/750W/650W:2

• 1200W/1000W:8
• 850W/750W:6
• 650W:4

• 1200W/1000W:3
• 850W/750W/650W:4

• 1200W/1000W/850W/750W: 1

• 650W:1

• 1200W/1000W:9
• 850W/750W/650W:8

• 1200W/1000W:
  • Product+cables：1.77kg+1.28kg
  • with Package:3.43kg
• 850W/750W:
  • Product+cables：1596g+1254g
  • with Package:3.1kg
• 650W:
  • Product+cables：1299g+1231g
  • with Package:2.78kg

• 10 Years
