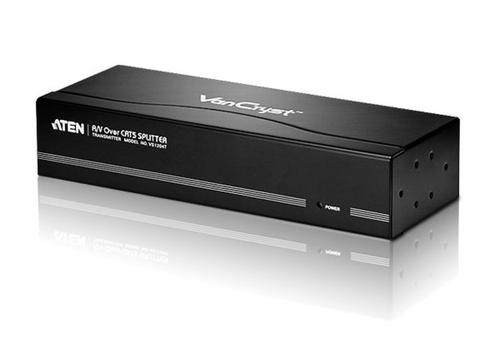

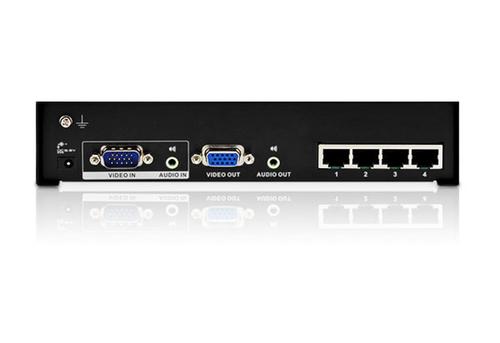

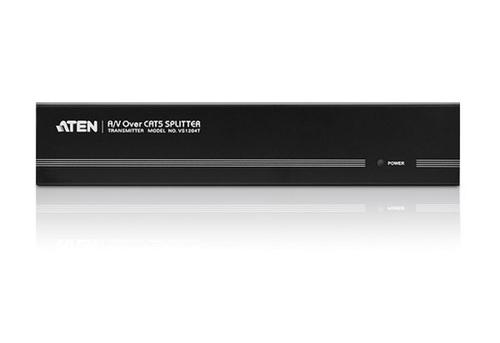

ATEN Cat. 5 audio/video distributor 4-port
|
Description
Specifications
Related products
The VS1208T A/V Over Cat 5 Splitter is a splitter designed to connect one source to 8 displays over a long distance. Incorporating suggested compatible receivers, the VS1208T A/V Over Cat 5 Splitter can be a complete solution ideal for any professional A/V installation that requires multimedia content to be delivered to multiple destinations located up to 300 m away from the source.
| Video ports quantity | 2 |
| Video port type | VGA |
| Video out | VGA |
| Ethernet LAN (RJ-45) ports | 8 |
| Audio ports quantity | 2 |
| DC-in jack | Yes |
| Product colour | Black |
| Housing material | Metal |
| Maximum resolution | 1920 x 1200 pixels |
| Maximum operating distance | 300 m |
| Maximum refresh rate | 60 Hz |
| Bandwidth | 225 MHz |
| Rack mounting | Yes |
| LED indicators | Yes |
| Number of displays supported | 8 |
| Cable types supported | Cat5, Cat5e |
| AC input voltage | 5.3 V |
| Power consumption (typical) | 7.04 W |
| Width | 75.1 mm |
| Depth | 200 mm |
| Height | 44 mm |
| Weight | 970 g |
| Quantity per pack | 1 pc(s) |
| Package width | 59 mm |
| Package depth | 239 mm |
| Package height | 160 mm |
| Package weight | 1.09 kg |
| Manual | Yes |
| AC adapter included | Yes |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Master (outer) case net weight | 4.85 kg |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 250 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case height | 175 mm |
| Master (outer) case gross weight | 5.9 kg |
| Products per master (outer) case | 5 pc(s) |
