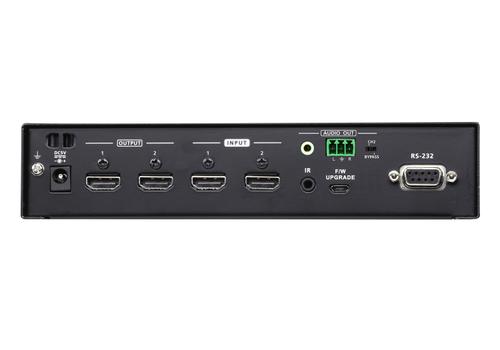

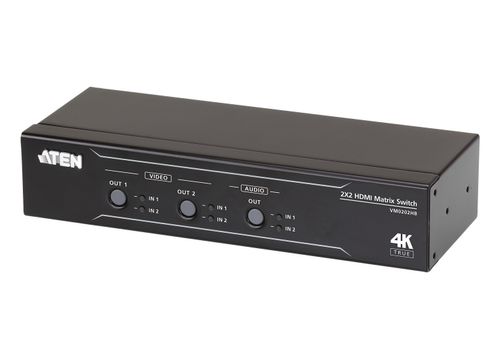

ATEN VM0202HB 2x2 True 4K HDMI Matix Switch
You have to log in to shop/see prices.
|
|
ATEN VM0202HB 2x2 True 4K HDMI Matix Switch
-
Type
Video Switch / Splitter
|
Description
Specifications
The VM0202HB is a 2 x 2 True 4K HDMI Matrix Switch featuring audio de-embedding. The VM0202HB offers an easy and affordable way to route True 4K high-definition HDMI video and audio. Supporting video resolutions up to 4096 x 2160 @ 60Hz (4:4:4), HDR, audio de-embedder, and data rates up to 18 Gbps, the VM0202HB delivers robust signal routing and swift digital video/audio switching that is perfect for most AV applications.
1x VM0202HB 2 x 2 True 4K HDMI Matrix Switch with Audio De-Embedder
1x JCNT-3301-103G 3-pole Terminal Block
1x 0AD8-1005-26M1 Power Adapter
1x 2XRT-0106G IR Remote Control
1x 2XRT-0003G IR Receiver
1x Rack Mount Kit
1x User Instructions
| Product type | AV matrix switcher |
| Data transfer rate | 18 Gbit/s |
| Maximum pixel clock | 600 MHz |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| HDCP version | 2.2 |
| 3D | Yes |
| Firmware upgradeable | Yes |
| Extended display identification data (EDID) | Yes |
| Supported resolutions | 4096 x 2160, 3840 x 2160 |
| Housing colour | Black |
| Housing material | Metal |
| Rack mounting | Yes |
| Control type | Buttons |
| LED indicators | Yes |
| Remote control included | Yes |
| Built-in display | No |
| HDMI input ports quantity | 2 |
| HDMI output ports quantity | 2 |
| USB connector type | Micro-USB |
| USB ports quantity | 1 |
| RS-232 ports | 1 |
| Remote (IR) input | 1 |
| DC-in jack | Yes |
| Power consumption (typical) | 2.47 W |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Products per master (outer) case | 5 pc(s) |
| Master (outer) case gross weight | 5.25 kg |
| Master (outer) case length | 325 mm |
| Master (outer) case width | 250 mm |
| Master (outer) case height | 175 mm |
| Master (outer) case net weight | 4.25 kg |
| Harmonized System (HS) code | 85299097 |
| Width | 200 mm |
| Depth | 76 mm |
| Height | 42 mm |
| Weight | 850 g |
| Package width | 59 mm |
| Package depth | 239 mm |
| Package height | 160 mm |
| Package weight | 1 kg |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| AC adapter included | Yes |
| IR receiver included | Yes |
