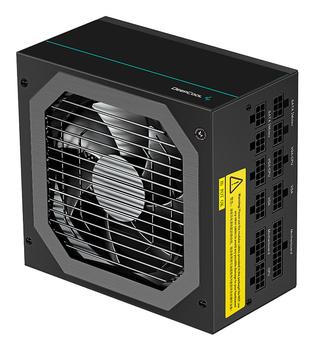

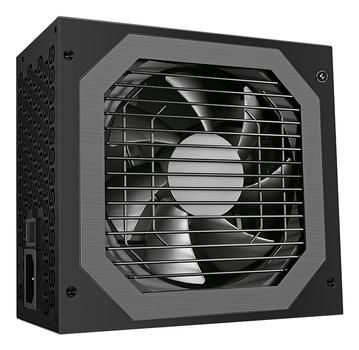

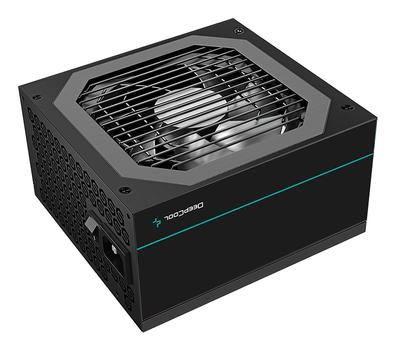

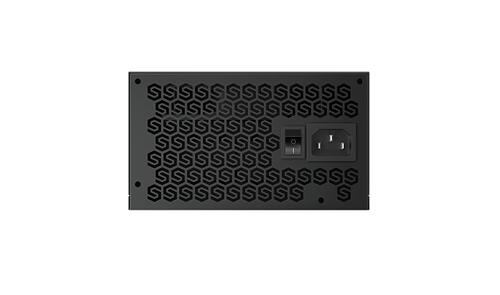

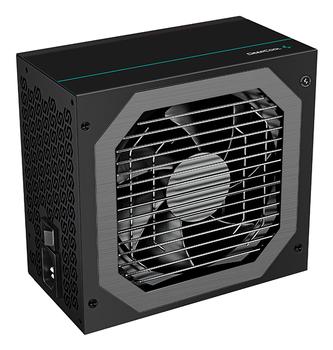

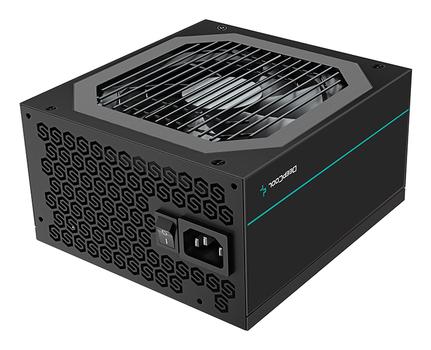

DEEPCOOL DQ - 850W - 80+ Gold

Name: DEEPCOOL - DQ - 850W - 80+ Gold
Brand: DEEPCOOL
SKU: 1002125683
Availability: PreOrder

Frontpage Components Power supplies DEEPCOOL DQ - 850W - 80+ Gold

You have to log in to shop/see prices.

DEEPCOOL

DEEPCOOL DQ - 850W - 80+ Gold

SKU:

DP-GD-DQ850-M-V2L

EAN:

6933412798934

Power 850W
80 PLUS certification 80 PLUS Gold

Out of stock

Notify when in stock

See more Power supplies from DEEPCOOL here

Description

Specifications

DQ850-M-V2L

DP-GD-DQ850-M-V2L

Features:

80 PLUS® GOLD certified - Up to 91.2% efficiency
100% High quality Japanese capacitors
Full bridge PFC + LLC Resonant converter
Fully modular with flat cable design
CircuitShield™ — OVP / UVP / SCP / OPP / OTP

Specifications:

Model DQ850-M-V2L
Type ATX 12V V2.4
Certifications 80PLUS GOLD
Dimension 150×160×86mm (W × L × H)
Output Capacity 850W
Input Voltage 100-240V
Input Current 12.0A
Input Frequency Range 47-63Hz

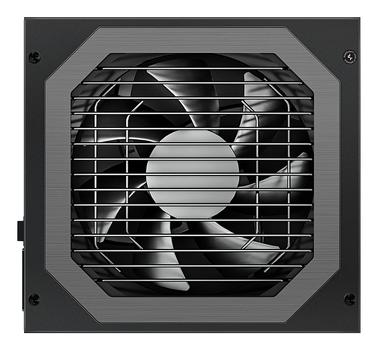

Fan Size 120mm
PFC Active
Power Good Signal 100-500ms
Hold Up Time >16ms(80% Loading)
Efficiency >90% Under Typical Load(50% Loading)
Standby Efficiency ErP Lot 3 2014
Protection OVP/UVP/OCP/SCP/OPP/OTP
Operation Temperature 0-40°C
Regulatory CE/CB/CCC/EAC/FCC/KCC/RCM/RoHs
MTBF 100,000 Hours
EAN 6933412798934
P/N DP-GD-DQ850-M-V2L

Please note that although care has been taken in the degree of relevancy, pictures are for display purposes only, and product appearance may differ from what you see. If there are any discrepancies between the product headline, description and picture, the correct information will be in the product headline (i.e. computer systems may not come with monitors even if pictured that way). If anything is unclear, please email support before placing your order.

Power
Total power	850 W
AC input voltage	100 - 240 V
AC input frequency	47 - 63 Hz
Input current	12 A
Power Factor Correction (PFC) type	Active

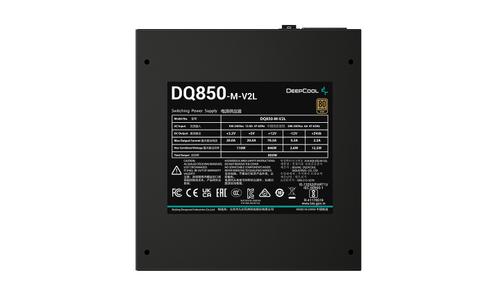

Combined power (+3.3V)	110 W
Combined power (+12V)	846 W
Combined power (+5V)	110 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	12.5 W
Max output current (+3.3V)	20 A
Max output current (+12V)	70.5 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	2.5 A
Hold time	16 ms
Efficiency	90%
Power protection features	Over current, Over power, Over voltage, Short circuit, Under voltage

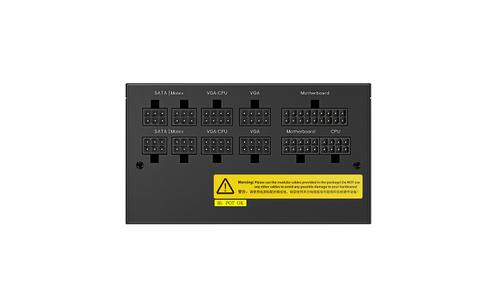

Ports & interfaces
Motherboard power connector	20+4 pin ATX
Motherboard power cable length	55 cm
Number of SATA power connectors	4
SATA power cable length	550,700,850,1000 mm
Peripheral (Molex) power connectors (4-pin)	2
Peripheral (Molex) power cable length	450,600 mm
EPS power connector (4+4 pin)	Yes
PCI Express power connectors (6+2 pin)	2
PCI Express power cable length	50 cm
CPU power cable length	70 cm
ATX power connector (20+4 pin)	Yes
Cabling type	Modular
Performance
Purpose	PC
80 PLUS certification	80 PLUS Gold
ATX version	2.31
Mean time between failures (MTBF)	100000 h
Certification	CE, CB, CCC, EAC, FCC, KCC, RCM
Design
Product colour	Black
Fan diameter	12 cm
Number of fans	1 fan(s)
Fan location	Top
On/off switch	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Packaging content

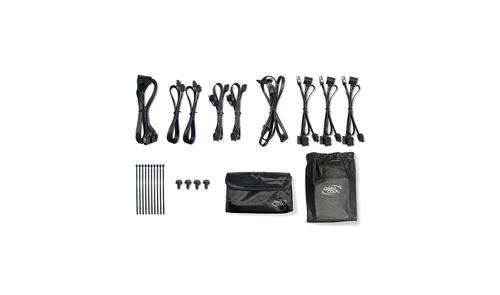

Cables included	CPU, PCIe, Peripheral (Molex), SATA
Weight & dimensions
Width	150 mm
Depth	160 mm
Height	86 mm
Packaging data
Package type	Box
Technical details
Sustainability certificates	RoHS
Logistics data
Harmonized System (HS) code	84733020
