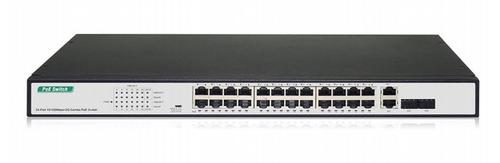

DIGITUS Fast Ethernet PoE Switch 24-port PoE + 2 Combo 370W PoE budget IN
You have to log in to shop/see prices.
|
|
DIGITUS Fast Ethernet PoE Switch 24-port PoE + 2 Combo 370W PoE budget IN
-
Product
Unmanaged
-
Ports
24
-
Speed
100Mbps
|
Description
Specifications
Digitus DN-95343. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 16384 entries, Switching capacity: 8.8 Gbit/s. Networking standards: IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Combo SFP ports quantity | 2 |
| Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| MAC address table | 16384 entries |
| Switching capacity | 8.8 Gbit/s |
| Forwarding rate | 6.5 Mpps |
| Packet forwarding rate (1 Gbps) | 1488095 pps |
| Packet forwarding rate (100 Mbps) | 148810 pps |
| Packet forwarding rate (10 Mbps) | 14881 pps |
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black,Silver |
| LED indicators | Activity,Link,PoE,Power |
| Number of fans | 2 fan(s) |
| Mean time between failures (MTBF) | 50000 h |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 250 W |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Width | 440 mm |
| Depth | 207 mm |
| Height | 44 mm |
