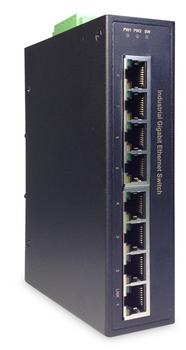

DIGITUS Industrial Gigabit Ethernet Switch 8-port DIN rail extended temp. range IN
-
Product
Managed
-
Ports
8
-
Speed
1Gbps
|
Description
Specifications
Digitus DN-651108. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x. DC input voltage: 12 - 56 V. Wall mountable
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-TX |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| MAC address table | 8000 entries |
| Switching capacity | 16 Gbit/s |
| Store-and-forward | Yes |
| Product colour | Black |
| Housing material | Metal |
| Wall mountable | Yes |
| DIN rail mounting | Yes |
| Certification | EN 50155 |
| Plug and Play | Yes |
| Mean time between failures (MTBF) | 500000 h |
| Redundant power supply (RPS) support | Yes |
| DC input voltage | 12 - 56 V |
| Power consumption (typical) | 5 W |
| Power protection features | Over voltage,Short circuit |
| Operating temperature (T-T) | -40 - 85 °C |
| Width | 36.2 mm |
| Depth | 105 mm |
| Height | 142 mm |
| Weight | 520 g |
| Quick start guide | Yes |
| Terminal block included | Yes |
| Package width | 65 mm |
| Package depth | 165 mm |
| Package height | 215 mm |
| Package volume | 2305.88 cm³ |
| Package weight | 790 g |
| Master (outer) case width | 24 cm |
| Master (outer) case length | 35 cm |
| Master (outer) case height | 56 cm |
| Master (outer) case weight | 12.6 kg |
| Master (outer) case volume | 47040 cm³ |
| Quantity per master (outer) case | 16 pc(s) |
