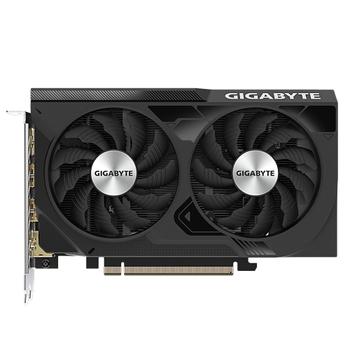

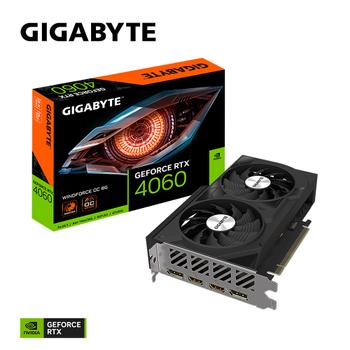

GIGABYTE Geforce Rtx 4060 Windforce Oc
You have to log in to shop/see prices.
|
|
GIGABYTE Geforce Rtx 4060 Windforce Oc
-
GPU Family
NVIDIA
-
GPU
GeForce RTX 4060
-
Interface
PCI Express 4.0
-
Video Memory
8GB
-
Video Memory Type
GDDR6
-
Memory Bus
128
-
HDMI
2
-
Displayport
2
-
USB-C
0
-
Profile
Dual Slot
-
Cooling Type
Active
|
Description
Specifications
GeForce RTX™ 4060 WINDFORCE OC 8G
GV-N4060WF2OC-8GD
Features:
- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Powered by GeForce RTX™ 4060
- Integrated with 8GB GDDR6 128bit memory interface
- WINDFORCE Cooling System
- Protection back plate
- Core Clock : 2475 MHz (Reference card: 2460 MHz)
Specifications:
Graphics Processing
Core Clock
- 2475 MHz (Reference card: 2460 MHz)
CUDA® Cores
Memory Clock
Memory Size
Memory Type
Memory Bus
Card Bus
Digital max resolution
Multi-view
Card size
PCB Form
DirectX
OpenGL
Recommended PSU
Power Connectors
Output
- DisplayPort 1.4a*2
- HDMI 2.1a*2
Accessories
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 4060 |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 3072 |
| Processor frequency | 2475 MHz |
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 128 bit |
| Data transfer rate | 17 Gbit/s |
| Interface type | PCI Express 4.0 |
| HDMI ports quantity | 2 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 2 |
| Thunderbolt 3 ports quantity | 0 |
| Mini HDMI ports quantity | 0 |
| HDMI version | 2.1a |
| Mini DisplayPorts quantity | 0 |
| DisplayPort version | 1.4a |
| TV tuner integrated | No |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| HDCP | Yes |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| AMD FreeSync | No |
| Cooling type | Active |
| Cooling technology | Gigabyte WATERFORCE |
| Number of fans | 2 fan(s) |
| Form factor | Full-Height/Half-Length (FH/HL) |
| Product colour | Black |
| Minimum system power supply | 450 W |
| Supplementary power connectors | 1x 8-pin |
| Length | 192 mm |
| Depth | 41 mm |
| Height | 120 mm |
| Package type | Box |
| Quick installation guide | Yes |
