GIGABYTE GP-P650B, PC Power Supply (Black)

Name: GIGABYTE - GP-P650B, PC Power Supply (Black)
Brand: GIGABYTE
SKU: 1000380693
Availability: PreOrder

Frontpage Components Power supplies GIGABYTE GP-P650B, PC Power Supply (Black)

You have to log in to shop/see prices.

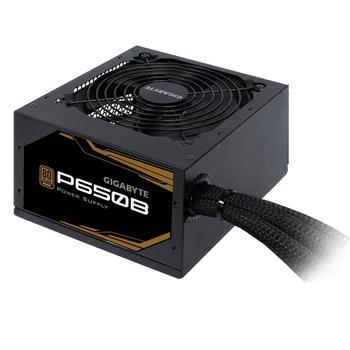

GIGABYTE GP-P650B, PC Power Supply (Black) (GP-P650B)

GIGABYTE GP-P650B, PC Power Supply (Black)

SKU:

GP-P650B

EAN:

4719331550295

Power 650W
80 PLUS certification 80 PLUS Bronze

Out of stock

Notify when in stock

See more Power supplies from GIGABYTE here

Description

Specifications

80 Plus Bronze Certified
80 Plus certified ensures the better power efficiency. Less power waste reduces the heat and fan noise. P650B can be up to 89% efficiency.

Reliable Mesh Braided Cable
P650B provides the best solution for the system builds. The mesh braided cable reduces the clutter and improves the airflow in the case.

100% Japanese Capacitors
All capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.

Single +12V Rail
Single +12V rail provides the best power output, stability and compatibility for the hardware. And it is the best design for installation.

120mm Hydraulic Bearing (HYB) Fan
120mm Hydraulic Bearing fan optimizes the noise reduction and the thermal performance. The fan speed is adjusted according to the automatic power detection. The Hydraulic Bearing fan provides longer and more stable life time.

Please note that although care has been taken in the degree of relevancy, pictures are for display purposes only, and product appearance may differ from what you see. If there are any discrepancies between the product headline, description and picture, the correct information will be in the product headline (i.e. computer systems may not come with monitors even if pictured that way). If anything is unclear, please email support before placing your order.

Power
Total power	650 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	9 - 4 A
Maximum input current (@110V)	9 A
Maximum input current (@220V)	4 A
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	108 W
Combined power (+12V)	648 W
Combined power (+5V)	108 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	12.5 W
Max output current (+3.3V)	18 A
Max output current (+12V)	54 A
Max output current (+5V)	15 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	2.5 A
Power protection features	Over power, Overcharge, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector	20+4 pin ATX
Motherboard power cable length	60 cm
Number of SATA power connectors	6
SATA power cable length	150,500 mm
Peripheral (Molex) power connectors (4-pin)	3
Peripheral (Molex) power cable length	150,500 mm
PCI Express power connectors (6+2 pin)	4
PCI Express power cable length	65 cm
CPU P4 connector (4-pin)	1
CPU power connector (4+4 pin)	Yes
CPU power cable length	60 cm
ATX power connector (20+4 pin)	Yes
Floppy disk drive connector	Yes
Cabling type	Non-Modular
Performance
Purpose	PC
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Bronze
ATX version	2.31
Noise level	39 dB
Bearing technology	HDB
Mean time between failures (MTBF)	100000 h
Design
Product colour	Black
Cooling type	Active
Fan diameter	12 cm
Number of fans	1 fan(s)
Fan location	Top
On/off switch	Yes
Certificates
Certification	CE/CCC/BSMI/KCC/EAC/UL/TUV/RCM/FCC/PSE
Weight & dimensions
Width	140 mm
Depth	150 mm
Height	86 mm
Packaging data
Package type	Box
Logistics data
Harmonized System (HS) code	84733020
Other features
Noise level (silent mode, <30%)	20 dB
Noise level (quiet mode, 50%)	29 dB
Noise level (full-load mode, 100%)	39 dB
Power management	Yes
