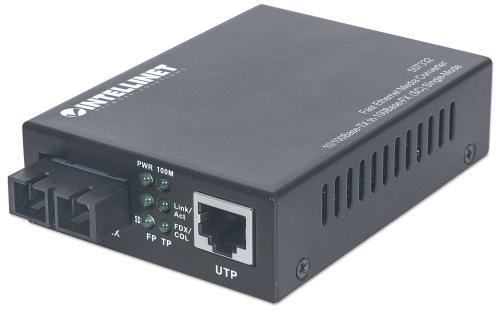

INTELLINET Single Mode Media Converter, Base-Tx to 100Base-Fx (SC) Single-Mode, 20km (Euro 2-pin plug) Fibermedieomformer Ethernet Fast Ethernet
Frontpage
Communication
Network Acc.
INTELLINET Single Mode Media Converter, Base-Tx to 100Base-Fx (SC) Single-Mode, 20km (Euro 2-pin plug) Fibermedieomformer Ethernet Fast Ethernet
You have to log in to shop/see prices.
|
|
INTELLINET Single Mode Media Converter, Base-Tx to 100Base-Fx (SC) Single-Mode, 20km (Euro 2-pin plug) Fibermedieomformer Ethernet Fast Ethernet
|
Description
Specifications
INT Media Converter, 100Base-TX (RJ45)/100Base-FX (SC) Singl
| Maximum data transfer rate | 100 Mbit/s |
| Converter input interface | 100BASE-FX, 100Base-TX |
| Converter output interface | 100Base-FX |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Auto MDI/MDI-X | Yes |
| Duplex system | Full |
| Maximum transfer distance | 20000 m |
| Wavelength | 1310 nm |
| Fiber mode structure | Single-mode |
| Sensitivity | -32 dBmW |
| Mean time between failures (MTBF) | 100000 h |
| Internal | No |

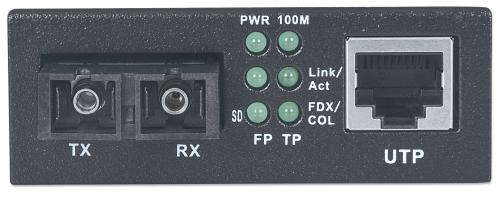

| LED indicators | Activity, Link, Power |
| Housing material | Metal |
| Fiber optic connector | SC |

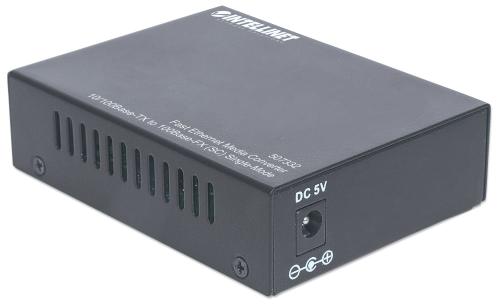

| Input voltage | 5 V |
| Input current | 1 A |
| Power consumption (max) | 5 W |
| External power adapter | Yes |
| Width | 70 mm |
| Depth | 105 mm |
| Height | 26 mm |
| Weight | 180 g |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -45 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| AC adapter included | Yes |
| Manual | Yes |
| Certification | FCC B, CE |
| Harmonized System (HS) code | 85176990 |
