LEVELONE 15IN LCD KVM RACK CONSOLE . ACCS
You have to log in to shop/see prices.
|
|
LEVELONE 15IN LCD KVM RACK CONSOLE . ACCS
|
Description
Specifications
Related products

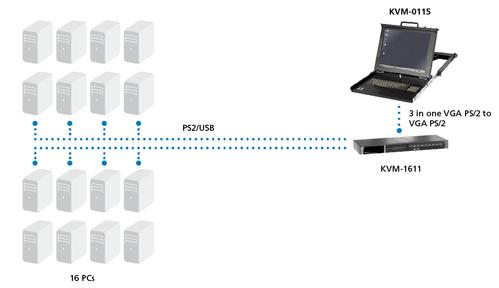

An Ideal Solution for Complete KVM Management
LevelOne's KVM-0115 and KVM-0117 Rackmount KVM Consoles incorporates a display with keyboard and trackball to manage the remote servers.
Multiple Input Interfaces
The LevelOne KVM-0115 and KVM-0117 provides the most economical and convenient server management-solutions available in today’s competitive network management markets. Equipped with an integrated PS/2 and USB interface to control workstations through its integrated keyboard, touchpad and TFT display the KVM management switches provide full management access to server farms and other systems connected.
Bright Active Matrix TFT Display
The KVM-0115 and KVM-0117 Rackmount KVM Consoles are available with either a 15 inch or 17 inch bright active matrix TFT display. With high resolutions display of up to 1024x768 on the 15 inch KVM-0115 and 1280x1024 on the 17 inch KVM-0117 LCD Drawers, system and server status can easily be monitored and managed from the TFT display.
Quick and Easy Installation

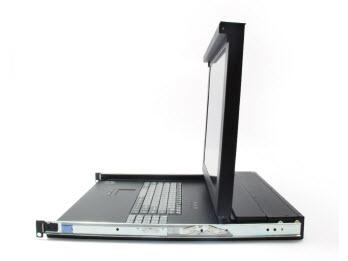

The LevelOne KVM-0115 and KVM-0117 also feature a unique 1U rackmountable dual-rail design for easy installation and quick access in server control rooms or in a remotely controlled location.
| Display diagonal | 38.1 cm (15") |
| Display resolution | 1024 x 1786 pixels |
| Display brightness | 250 cd/m² |
| Contrast ratio (typical) | 400:1 |
| Viewable size, horizontal | 13 cm |
| Viewable size, vertical | 10 cm |
| On Screen Display (OSD) | Yes |
| Pixel pitch | 0.297 x 0.297 mm |
| Display type | LCD |
| Display number of colours | 16.78 million colours |
| Operating relative humidity (H-H) | 10 - 90% |
| Keyboard number of keys | 106 |
| Built-in touchpad | Yes |
| Keyboard language | German |
| Keyboard layout | QWERTZ |
| Power consumption (typical) | 16 W |
| AC adapter input voltage | 100 - 240 V |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Width | 447 mm |
| Height | 44 mm |
| Depth | 482 mm |
| Weight | 11.8 kg |
| Package weight | 17.6 kg |
| Package width | 560 mm |
| Package depth | 190 mm |
| Package height | 660 mm |
| Cables included | AC, DVI, PS/2, USB |
Communication / KVM/Dataswitch
