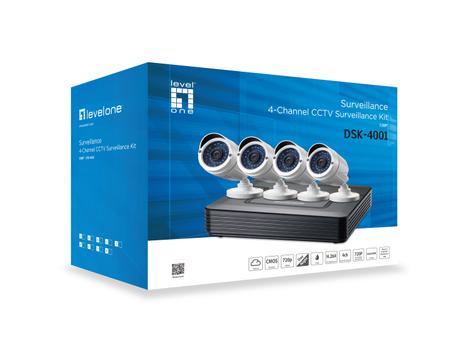

LEVELONE DSK-4001 DVR + kamera(er)
You have to log in to shop/see prices.
|
|
LEVELONE DSK-4001 DVR + kamera(er)
|
Description
Specifications
Related products
The LevelOne 4-Channel CCTV Surveillance Kit offers an ideal way to monitor a large house or building premises, for situations requiring professional-level surveillance. With superior quality, high-definition cameras stationed on all sides of the building, all access points can be securely watched at all times of the day and night. Sophisticated software allows easy monitoring of all eight cameras from any PC, laptop, tablet or smartphone. Cameras all conform to Weatherproof standard IP66, and operate in temperatures from -10 C to 55 C. Built-in infrared LEDs support night monitoring for distances up to 30 metres, providing crystal-clear images at any time, under any conditions. The quality cameras also offer full-screen, high resolution recording and playback. Everything you need for safe, secure surveillance of your home or business, providing the utmost in peace-of-mind.
| Connectivity technology | Wired |
| Camera included | Yes |
| Surveillance camera form factor | Bullet |
| Camera interface | BNC |
| Camera cable length | 18 m |
| Heat function | No |
| Night mode | Yes |
| Placement supported | Indoor/outdoor |
| Rotating | No |
| Number of cameras | 4 |
| Night vision distance | 30 m |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 4 mm (1 / 4") |
| LED type | IR |
| Viewing angle | 65° |
| Camera shutter speed | 1/50 - 1/100000 s |
| International Protection (IP) code | IP66 |
| Recorder included | Yes |
| Channels quantity | 4 channels |
| Storage media type | HDD |
| Card reader integrated | No |
| Operating system installed | Linux Embedded |
| Optical drive included | No |
| BNC input ports | 4 |
| VGA (D-Sub) ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| HDD size | 3.5" |
| Number of HDDs supported | 1 |
| Number of HDDs installed | 0 |
| HDD capacity | 6 TB |
| Supported network protocols | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP, HTTPS |
| DC-in jack | Yes |
| LED indicators | HDD, LAN, Power |
| Line inputs (RCA) | 1 |
| Line outputs (RCA) | 1 |
| Maximum HDD capacity | 6 TB |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Playback resolutions supported | 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet interface type | Fast Ethernet |
| Power source type | DC |
| DC output voltage | 12 |
| Camera power consumption (standby) | 4 W |
| Recorder power consumption (typical) | 8 W |
| Built-in microphone | No |
| Audio formats supported | G.711 A-law |
| Mobile operating systems supported | Android, iOS |
| Operating temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Remote viewing | Yes |
| Video compression formats | H.264, MP4 |
| Supported video modes | 720p |
| Web-based management | Yes |
| Country of origin | China |
| Product colour | Black, White |
| Certification | CE |
| Camera width | 6.4 cm |
| Camera depth | 16.5 cm |
| Camera height | 6.4 cm |
| Recorder width | 20 cm |
| Recorder depth | 22.2 cm |
| Recorder height | 4.5 cm |
| Width | 225 mm |
| Depth | 430 mm |
| Height | 221 mm |
| Package width | 374 mm |
| Package depth | 154 mm |
| Package height | 308 mm |
| Package weight | 4 kg |
| Power supply included | Yes |
| Manual | Yes |
| Cables included | DC |
| Package type | Box |
| Quick installation guide | Yes |
| Software CD | Yes |
