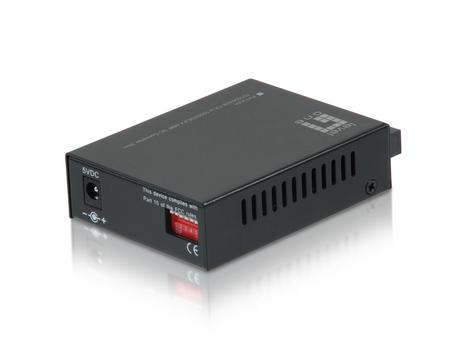

LEVELONE Rj45 To Sc Fast Ethernet
You have to log in to shop/see prices.
|
|
LEVELONE Rj45 To Sc Fast Ethernet
|
Description
Specifications
Related products
The FVT-2001 MMF SC media converter is able to convert network signals between copper and fiber-optic based networks. The converter provides a 10/100Base-TX RJ-45 port, supports full duplex and half duplex switch connectivity and 10Base-T and 100Base-TX auto-sensing. Used in multi-mode with fibre-optic cabling, this can extend a network range up to 2km.
The device features built-in Dip switches for easy converter configuration, which function on the Smart LFP (Link Fault Pass-through), allowing the converter to monitor both the fiber and copper ports for signal loss, as well as converter transmission method, auto-negotiation mode for adjusting copper speed and full & half duplex mode.
The FVT-2001 is able to operate in temperatures from -10° up to 55° Celsius. The converter can be used as a standalone unit or as a slide-in module to the CHV-2000 19” Converter Chassis, which can accommodate up to 14 units for use in a central wiring closet.
| Maximum data transfer rate | 100 Mbit/s |
| Converter input interface | 10Base-T, 100Base-TX |
| Converter output interface | 100Base-FX |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Store-and-forward | Yes |
| Duplex system | Full, Half |
| Link Loss Carry Forward (LLCF) supported | Yes |
| Link Loss Return (LLR) supported | Yes |
| Maximum transfer distance | 2000 m |
| Wavelength | 1310 nm |
| Fiber mode structure | Multi-mode |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| Internal | No |
| LED indicators | Activity, Link |
| Product colour | Black |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber optic connector | SC |
| Power over Ethernet (PoE) ports quantity | 1 |
| DC-in jack | Yes |
| Input voltage | 5 V |
| Input current | 1 A |
| Width | 94 mm |
| Depth | 70 mm |
| Height | 25 mm |
| Weight | 420 g |
| Operating temperature (T-T) | 40 - 75 °C |
| Storage temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| AC adapter included | Yes |
| Quick installation guide | Yes |
| Package width | 235 mm |
| Package depth | 125 mm |
| Package height | 55 mm |
| Package weight | 494 g |
| Package type | Box |
| Compliance certificates | RoHS |
| Certification | FCC, CE |
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
