PLANET 5GHz 14dBi Flat Panel Dual
You have to log in to shop/see prices.
|
|
PLANET 5GHz 14dBi Flat Panel Dual
|
Description
Specifications

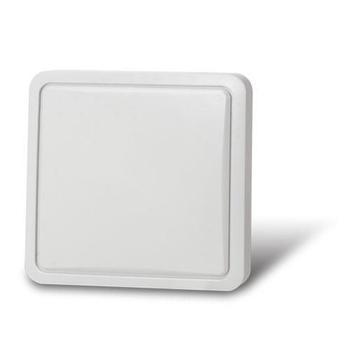

Planet ANT-FP14AD
5GHz 14dBi Flat Panel Dual Polarization Directional Antenna
- Designed to extend wireless coverage of 802.11a/n devices at frequency of 5GHz
- Intergrating two polarities into one antenna helps to reduce cost of deployment
- 14dBi high-gain antenna
- IP55-rated case
- Compact-sized housing and lightning protection system design
- Built-in two N-Type female connectors
- Easily-extended, point-to-point wireless coverage
| Antenna gain level (max) | 14 dBi |
| Frequency band | 5.15 ~ 5.85 GHz |
| Networking standards | IEEE 802.11a,IEEE 802.11n |
| Impedance | 50 Ω |
| Horizontal beam width | 30° |
| Vertical beam width | 30° |
| Antenna type | Directional antenna |
| Antenna connector type | N-type |
| Connector gender | Female |
| Polarization | Dual polarization |
| Voltage Standing Wave Ratio (VSWR) | 1.5 |
| Waterproof | Yes |
| Ultraviolet (UV) resistant | Yes |
| Survival wind speed | 241.4 km/h |
| Mounting | Pole |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| Product colour | White |
| Operating temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Width | 228 mm |
| Depth | 15 mm |
| Height | 228 mm |
| Weight | 550 g |
| Quantity | 1 |
| Mounting kit | Yes |
