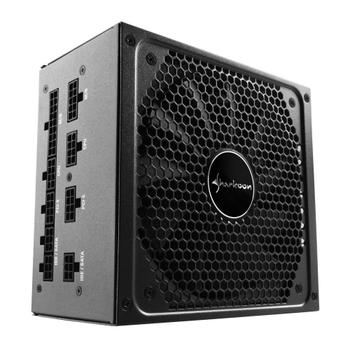

SHARKOON SILENT STORM COOL ZERO 650W 80 PLUS GOLD VOLLMODULAR CPNT

SilentStorm Cool Zero 750W

• 80 PLUS Gold Certified. The SilentStorm Cool Zero is certified with 80 PLUS Gold, achieving at least 90% efficiency at 50 % load as well as 87 % efficiency at 20 % and 100 % load.
• Quality Components. The exclusive use of Japanese capacitors rated to 105°C and a 135 mm fan with a fluid dynamic bearing provide a quiet and reliable operation with an average life cycle of over 100,000 hours.
• Adjustable Cooling. In the fan delay mode, the power supply fan can, if required, continue to run for 60 seconds after shutdown to ensure a complete cooling of the system. In addition, with the Zero RPM mode, the fan rotation can be stopped at low to moderate loads, thus enabling a noise free operation.
• Ultra-Stable Voltage Regulation. With modern LLC resonant converter technology, the power supply unit provides a constant and reliable voltage with minimum noise and heat levels.
• Fully Modular and RYZEN Compatible. Via a total of two 4+4-pin CPU connectors, modern AMD RYZEN systems can be powered without the need for an adapter.
• Equipped with all Safety Features. Over current and over voltage protection, under voltage protection, short circuit protection and over temperature and over power protection are all supported.

Input

Voltage:

100 - 240 VAC

Frequency:

50 - 60 Hz

Input Current (110/230 V):

10 A

Output

12 V Rail(s):

1

Load 3.3 V:

22 A

Load 5 V:

22 A

Max. Combined Power 3.3 V + 5 V:

120 W

Load 12 V1:

54.2 A

Max. Combined Power 12 V:

650 W

Load 5 VSB:

3 A

Load -12 V:

0.3 A

Cable and Connectors

Cable Configuration:

Fully Modular

Flat Cables:

✓

Maximum Cable Length:

115 cm

Cable Length Mainboard Connector:

56 cm

Cable Length CPU Connector:

62.5 cm

Cable Length PCIe Connector:

55 cm + 15 cm

Cable Length to First Peripheral Connector:

55 cm

20+4-Pin Mainboard Connector:

1

4+4-Pin CPU Connector:

2

6+2-Pin PCIe Connector:

4

SATA Connector:

12

IDE Connector:

2

Floppy Connector:

1

Fan

Fan Size:

135 mm

Bearing Type:

Fluid Dynamic Bearing

Protections

OCP (Over Current Protection):

✓

OVP (Over Voltage Protection):

✓

UVP (Under Voltage Protection):

✓

SCP (Short Circuit Protection):

✓

OTP (Over Temperature Protection):

✓

OPP (Over Power Protection):

✓

Safety Certifications

CE:

✓

FCC:

✓

CB:

✓

Package Contents

SilentStorm Cool Zero 650

Cable Bag

Set of modular cables

Power Cord

Mounting Screws

Manual
