STARTECH StarTech.com 3 Port 2b 1a 1394 Mini PCI Express FireWire Card Adapter - FireWire adapter - PCIe Mini Card - FireWire 800 - 2 ports + 1 x FireWire - MPEX1394B3 - FireWire adapter - PCIe Mini Card - Fir

Name: STARTECH - StarTech.com 3 Port 2b 1a 1394 Mini PCI Express FireWire Card Adapter - FireWire adapter - PCIe Mini Card - FireWire 800 - 2 ports + 1 x FireWire - MPEX1394B3 - FireWire adapter - PCIe Mini Card - Fir
Brand: STARTECH
SKU: 3927705
Availability: PreOrder

Frontpage Storage Controllers STARTECH StarTech.com 3 Port 2b 1a 1394 Mini PCI Express FireWire Card Adapter - FireWire adapter - PCIe Mini Card - FireWire 800 - 2 ports + 1 x FireWire - MPEX1394B3 - FireWire adapter - PCIe Mini Card - Fir

You have to log in to shop/see prices.

STARTECH StarTech.com 3 Port 2b 1a 1394 Mini PCI Express FireWire Card Adapter - FireWire adapter - PCIe Mini Card - FireWire 800 - 2 ports + 1 x FireWire - MPEX1394B3 - FireWire adapter - PCIe Mini Card - Fir (MPEX1394B3)

STARTECH StarTech.com 3 Port 2b 1a 1394 Mini PCI Express FireWire Card Adapter - FireWire adapter - PCIe Mini Card - FireWire 800 - 2 ports + 1 x FireWire - MPEX1394B3 - FireWire adapter - PCIe Mini Card - Fir

SKU:

MPEX1394B3

EAN:

0065030842914

Output Interface Firewire
External Ports Yes
Host Interface Mini PCI Express
Internal Ports Yes
RAID No

Out of stock

Notify when in stock

See more Controllers from STARTECH here

Description

Specifications

Related products

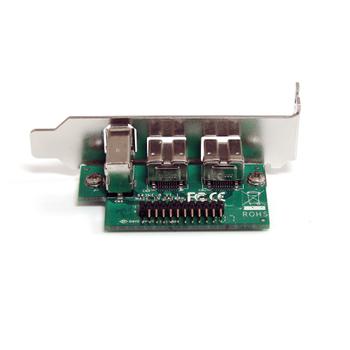

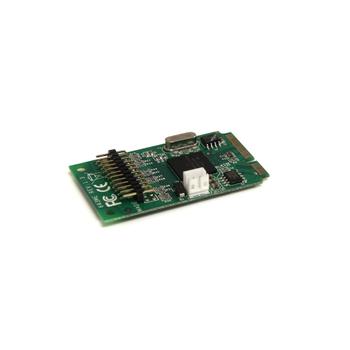

Add 2 FireWire-800 and 1 FireWire-400 port through a Mini PCI Express slot

The MPEX1394B3 3-Port Mini PCI Express FireWire Card is a PCI Express to FireWire-800/FireWire-400 adapter that enables you to add external FireWire connectivity on very small form factor or embedded systems. The PCIe FireWire card provides two FireWire-800 ports and one FireWire-400 port, this adapter card supports the latest external FireWire storage devices at data transfer speeds of up to 800 Mbps. Using the Mini PCI Express (Mini Card) form factor, this adapter card is designed for use in the latest very small form factor computer systems, such as Mini-ITX or custom embedded solutions where a full-sized PCI Express card would not fit. Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Ports & interfaces
Host interface	PCIe
Output interface	IEEE 1394/Firewire
Expansion card form factor	Full-height / Low-profile
Expansion card standard	PCIe 1.1
Firewire (IEEE 1394) ports	3
Design
Internal	Yes
Product colour	Black, Stainless steel
Hot-swap	Yes
Features
Chipset	Texas Instruments - XIO2213B
Data transfer rate (max)	0.8 Gbit/s
Plug and Play	Yes
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-54 - 150 °C
System requirements
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2019
Technical details
Compliance certificates	CE, RoHS
Sustainability compliance	Yes
Weight & dimensions
Width	30 mm
Depth	50 mm
Height	4 mm
Weight	91 g
Packaging data
Mounting brackets included	Yes
Manual	Yes
Package width	175 mm
Package depth	145 mm
Package height	32 mm
Package weight	198 g
Logistics data
Harmonized System (HS) code	84733020
Products per master (outer) case	25 pc(s)
Master (outer) case width	280 mm
Master (outer) case length	663 mm
Master (outer) case height	202 mm
