STARTECH StarTech.com M.2 NVMe SSD to PCIe x4 Mobile Rack/Backplane with Removable Tray for PCI Express Expansion Slot, Tool-less Installation, PCIe 4.0/3.0 Hot-Swap Drive Bay, Key Lock - 2 Keys Included - Int
You have to log in to shop/see prices.
|
|
STARTECH StarTech.com M.2 NVMe SSD to PCIe x4 Mobile Rack/Backplane with Removable Tray for PCI Express Expansion Slot, Tool-less Installation, PCIe 4.0/3.0 Hot-Swap Drive Bay, Key Lock - 2 Keys Included - Int
SKU:
M2-REMOVABLE-PCIE-N1
|
Description
Specifications
Install into a PCIe x 4 (and up) expansion slot to add a removable and lockable M.2 NVMe drive tray (drive not included)
Utilize an available PCIe 4.0 x4 expansion slot for the installation, removal, or interchange of PCIe M.2 SSDs. The drive tray accommodates M-Key M.2 NVMe SSDs in 2230, 2242, 2260, and 2280 sizes.
Toolless Installation

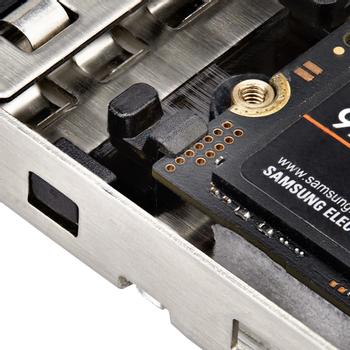

Install an M.2 drive into the drive tray and insert the tray into the drive bay, without the need for tools. The drive tray features a power/activity LED indicator to monitor drive status. A latching mechanism with optional lock (2 keys included) deters the theft of mission-critical data storage devices.
Optimal Performance
The vented stainless-steel frame and tray with thermal pads aids heat dissipation, ensuring optimal and reliable performance while reducing potential thermal throttling. Anti-vibration springs on the drive tray reduce impact during installation and enhance the overall stability and longevity of the drive. A low-profile bracket is included for small form-factor systems.
Hot-Swappable
Additional drive trays (TR-M2-REMOVABLE-PCIE, sold separately) provide flexibility and convenience when managing multiple M.2 drives. NVMe PCIe hot swap support is dependent on the motherboard. Verify hot swap support with the manufacturer of the motherboard, and for instructions regarding how to enable this feature.
The StarTech.com Advantage
| Host interface | PCIe |
| Output interface | M.2 |
| Expansion card standard | PCIe 4.0 |
| Internal | Yes |
| Product colour | Black, Silver |
| Purpose | PC |
| LED indicators | Yes |
| Mean time between failures (MTBF) | 10000 h |
| Hot-swap | Yes |
| Data transfer rate (max) | 64 Gbit/s |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Plug and Play | Yes |
| Operating temperature (T-T) | 0 - 65 °C |
| Storage temperature (T-T) | -35 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Compliance certificates | RoHS |
| Sustainability compliance | Yes |
| Width | 120 mm |
| Depth | 167 mm |
| Height | 19 mm |
| Weight | 65 g |
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Package width | 151 mm |
| Package depth | 230 mm |
| Package height | 46 mm |
| Package weight | 215 g |
| Products per master (outer) case | 20 pc(s) |
| Master (outer) case width | 325 mm |
| Master (outer) case length | 485 mm |
| Master (outer) case height | 270 mm |
