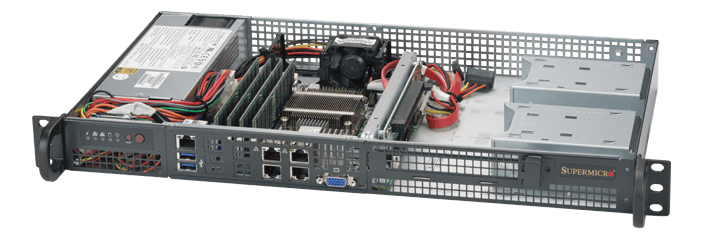

SUPERMICRO ATOM C3758 BAREBONE 200W 128GB SATA3 4XGBE 1PCIE BARE
You have to log in to shop/see prices.
|
|
SUPERMICRO ATOM C3758 BAREBONE 200W 128GB SATA3 4XGBE 1PCIE BARE
-
Type
Rack (1U)
-
CPU family
Intel
-
CPU
C3758
-
Number of processors installed
1
-
Max CPU
1
-
Max Disks
4
-
Installed Memory
0GB
-
Max Memory
128GB
-
Redundant PSU
No
-
CTO / BTO
No
|
Description
Specifications
SuperServer SYS-5019A-FTN4
| Built-in processor | No |
| Motherboard chipset | Intel SoC |
| Processor socket | BGA 1310 |
| Processor family | Intel |
| Number of processors supported | 1 |
| Number of DIMM slots | 4 |
| Supported memory types | DDR4-SDRAM |
| Supported DIMM module capacities | 4GB, 8GB, 16GB, 32GB |
| Maximum internal memory | 128 GB |
| Maximum RDIMM memory | 128 GB |
| Maximum UDIMM memory | 64 GB |
| Supported RDIMM clock speeds | 1600,1866,2133,2400 MHz |
| Memory voltage | 1.2 V |
| ECC | Yes |
| Number of storage drives supported | 4 |
| Hot-swap HDD bays | Yes |
| Storage drive sizes supported | 2.5,3.5" |
| Supported storage drive interfaces | Serial ATA III |
| On-board graphics adapter model | Aspeed AST2400 |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 4 |
| IPMI LAN (RJ-45) port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
| PCI Express slots version | 3.0 |
| PCI Express x4 slots | 1 |
| Sustainability certificates | RoHS |
| BIOS type | UEFI AMI |
| ACPI version | 5.0 |
| BIOS features | Plug & Play,SMBIOS 2.7.1,UEFI |
| Chassis type | Rack (1U) |
| Product colour | Black |
| Number of fans | 2 fan(s) |
| Fan diameter | 4 cm |
| Power supply | 200 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| DC output current (+5 V) | 8 A |
| DC output current (+12 V) | 16 A |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Width | 437 mm |
| Depth | 249 mm |
| Height | 43 mm |
