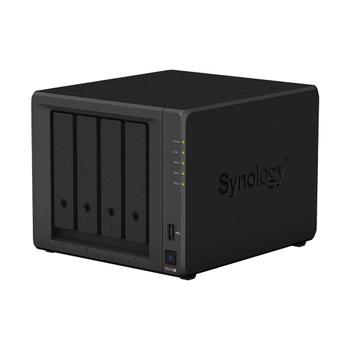

SYNOLOGY y Disk Station DS923+ - NAS server - 4 bays - SATA 6Gb/s / eSATA - RAID 0, 1, JBOD, 5, 6, 10 - RAM 4 GB - Gigabit Ethernet - iSCSI support

DiskStation DS923+

• Dependable Performance
  • Up to 625/559 MB/s sequential read/write throughput makes file operations quick and efficient
• Versatile Network Storage
  • Leverage built-in file and photo management, data protection, virtualization, and surveillance solutions
• Fast and Stable Connectivity
  • Two 1GbE ports for simple integration into existing environments with optional 10GbE connectivity to tackle more specialized, bandwidth-heavy applications
• Easy Capacity Expansion
  • Add 5 extra drive bays with one DX517 expansion unit for a maximum of 9 storage drives
• Extendable Product Support
  • Backed by Synology's 3-year limited hardware warranty, extendable to 5 years in select markets

• AMD Ryzen™ R1600 dual-core (4-thread), max. boost clock up to 3.1 GHz

• AES-NI

• 4 GB DDR4 ECC SODIMM (expandable up to 32 GB)

• 4 x 3.5" or 2.5" SATA HDD/SSD
• 2 x M.2 2280 NVMe SSD

• Yes

• 2 x USB 3.2 Gen 1 ports
• 1 x Expansion port (eSATA)

• Desktop

• 166 x 199 x 223 mm

• 2.24 kg

• 2 x 1GbE RJ-45

• Yes

• Supports E10G22-T1-Mini 10GbE RJ-45 Network Upgrade Module

• Yes

• 2 x (92 x 92 x 25 mm)

• 100 V to 240 V AC

• 50/60 Hz, single phase

• Temperature: 0°C to 40°C (32°F to 104°F)
• Relative humidity: 8% to 80% RH

• Temperature: -20°C to 60°C (-5°F to 140°F)
• Relative humidity: 5% to 95% RH

• 5,000 m (16,400 ft)

• SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, and VPN (PPTP, OpenVPN™, L2TP)

• Internal: Btrfs, ext4
• External: Btrfs, ext4, ext3, FAT32, NTFS, HFS+, exFAT

• Synology Hybrid RAID (SHR), Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10

• Max. single volume size: 108 TB
• Max. number of system snapshots: 65,536
• Max. number of internal volumes: 64

• Read/write cache support
• M.2 NVMe and 2.5" SATA SSD support

• Max. number of local user accounts: 2,048
• Max. number of local groups: 256
• Max. number of shared folders: 512
• Max. number of concurrent SMB/NFS/AFP/FTP connections: 1,000

• Windows® Access Control List (ACL) and application privileges

• Connects with Windows® AD/LDAP servers enabling domain users to login via SMB/NFS/AFP/FTP/File Station using their existing credentials

• VMware vSphere®, Microsoft Hyper-V®, Citrix®, OpenStack, and Kubernetes

• Firewall, shared folder encryption, SMB encryption, FTP over SSL/TLS, SFTP, rsync over SSH, login auto block, Let's Encrypt support, and HTTPS (customizable cipher suite)

• Google Chrome®, Firefox®, Microsoft Edge®, Safari® 13 and later, and Safari (iOS 13.0 and later) on iPad, Chrome (Android™ 11.0 and later) on tablets
