TRENDNET 2.5GBASE-T PCIE NETWORK ADAPTER ACCS
You have to log in to shop/see prices.
|
|
TRENDNET 2.5GBASE-T PCIE NETWORK ADAPTER ACCS
-
Host Interface
PCI Express
-
Interface
Copper, Ethernet
-
Speed
2.5Gbps
-
Ports
1
-
PCI V.
2.0
|
Description
Specifications

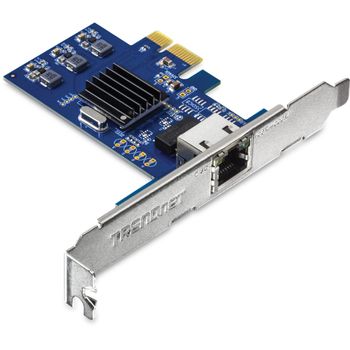

2.5GBASE-T PCIe Network Adapter
TRENDnet’s 2.5GBASE-T PCIe Network Adapter, model TEG-25GECTX, converts a free PCI Express slot into a 2.5GBASE-T Ethernet port. The 2.5G network adapter includes advanced features such as jumbo frame and VLAN tagging support. Compatible with Windows and Linux desktop computer designs, the 2.5G network adapter includes both standard and low-profile brackets.
2.5G Port
2.5G network adapter supports three speeds: 2.5Gbps, 1Gbps, and 100Mbps.
Jumbo Frame
Sends larger packets, or jumbo frames (up to 9KB), for increased performance.
Operating Systems
Compatible with Windows, Windows Server, and Linux operating systems.
2.5G Port
2.5G network adapter supports three speeds: 2.5Gbps, 1Gbps, and 100Mbps.
PCI Express
Converts a PCIe 2.0 x1 slot into a 2.5G Ethernet Port
2.5GBASE-T Support
2.5GBASE-T specification (802.3bz) supports 2.5G speeds over standard Cat5e cables at distances up to 100m (328 ft.)
Jumbo Frame
Sends larger packets, or jumbo frames (up to 9KB), for increased performance
VLAN Support
2.5G network adapter with IEEE 802.1Q tagged-based VLAN support

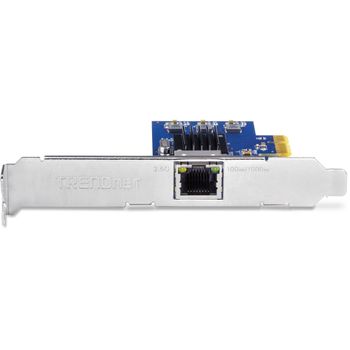

Brackets
Supports most installations with included standard and low-profile brackets
Operating Systems
Compatible with Windows, Windows Server, and Linux operating systems
LED Indicators
LED indicators convey port status, link speed and activity
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| Maximum data transfer rate | 2500 Mbit/s |
| Networking standards | IEEE 802.1Q,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3bz,IEEE 802.3u |
| Ethernet LAN | Yes |
| Internal | Yes |
| Product colour | Blue,Silver |
| LED indicators | Yes |
| Certification | CE, FCC |
| Power consumption (typical) | 1.8 W |
| Maximum operating temperature | 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Windows operating systems supported | Windows 10,Windows 7,Windows 8.1 |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2012,Windows Server 2016 |
| Width | 84 mm |
| Depth | 64 mm |
| Height | 18 mm |
| Weight | 42 g |
| Quick start guide | Yes |
