WIHA Strommesszange bis 1.000V
You have to log in to shop/see prices.
|
|

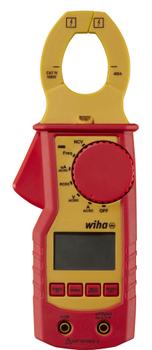

WIHA Strommesszange bis 1.000V
|
Clamp meter up to 1,000 V AC, CAT IV
45219
incl. 2x AAA batteries
THE testing Multitool for electricians.
When working, for example, on electrical systems that cannot be switched off, current measurement is a major challenge. With the measuring caliper from Wiha, the caliper bracket can be used to carry out measurements without interrupting the electrical circuit. Handling is greatly facilitated by the remote single-hand testing. The test tips allow additional tests, voltage measurement in the AC and DC range, as well as resistance, frequency, and capacity measurements. They also allow continuity and diode tests. This multi-functionality significantly increases the efficiency. A large LCD display with background illumination and data hold function makes the measurement results immediately readable even beyond the measurement process. An additional signal sound indicates the current flow during the continuity check. In addition, the measuring caliper from Wiha has an integrated flashlight function, providing optimal illumination conditions even in poorly lit work environments. The LPF function, coupled with the True-RMS function increase the process safety of your test by providing interference-free effective values. According to the measurement category CAT IV up to 1,000 V the measuring caliper offers maximum safety for working directly on the sources of low-voltage installations.
Standard
IP40 CAT IV 1.000 V
Application
For multi-functional use in different application locations.
Specifications:
| Order-No. |
45219 |
| EAN |
4010995452193 |
| Voltage V DC min – max |
0 - 1500 |
| Voltage V AC min – max |
0 - 1000 |
| Current A DC |
400 |
| Current A AC |
400 |
| Resistance (MΩ) |
40 MΩ |
| Integrated flashlight |
Yes |
| Frequency (MHz) |
5 MHz |
| True RMS |
Yes |
| Background illumination |
Yes |
| Data HOLD |
Yes |
| Min. measurement |
Yes |
| Max. measurement |
Yes |
| Measuring category |
CAT IV 1,000 V |
| Remote voltage test |
Yes |
| with battery |
Yes |
| AVG measurement |
Yes |
| Continuity check |
< 30 Ω |
| Overall length (mm) |
220 |
| Capacity (μF) |
100 μF |
